For example you have 5 scene and you want to render them in series so when one render is done, the other scene will be started to render automatically. There are some scripts and softwares for that but there is also a great way and easiest way to do this!
Let’s do it!;
The software we use; Autodesk’s “Backburner”. It comes with pack of Autodesk 3d Studio Max and Autodesk Maya.
Firstly, look if you have Backburner installed on your computer, if not, check and install it from 3d Studio Max or Maya’s setup.
Some important tricks and notes while using Backburner;
* Never close [SERVER] and [MANAGER] windows via “X”, always use SHUTDOWN from FILE menu.
* Ordering is important, you can have problems if you don’t do in order.
Batch rendering with Backburner in 3d Studio Max;
For example you have 5 scenes named; first_scene.max , second_scene.max , third_scene.max , forth_scene.max , fifth_scene.max
and you want to render them in series automatically.

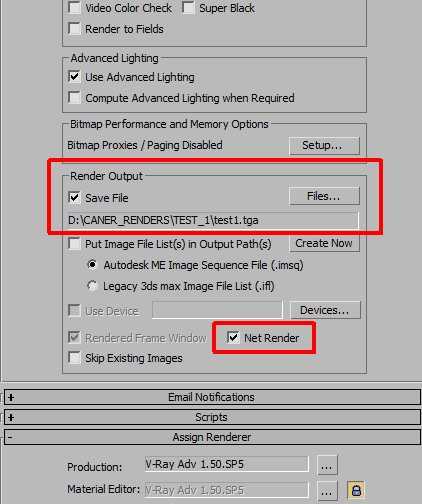

Firstly, for your all scenes, in render settings, set scene’s “Render Output Path”
and select “Net Render”
Now, from Start Menu > Programs > Autodesk > Backburner > Manager
It will open Backburner General Properties window, don’t change anything and press OK

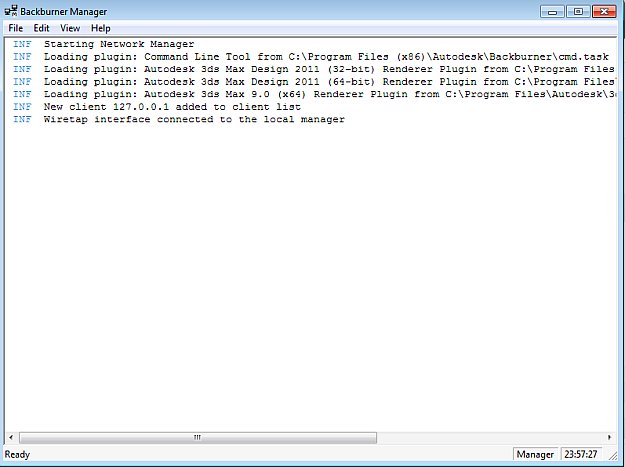

If everything is on way, will be opened Backburner Manager window like this;
Now, back to 3d Studio Max Render Setup Window and Press [Render]

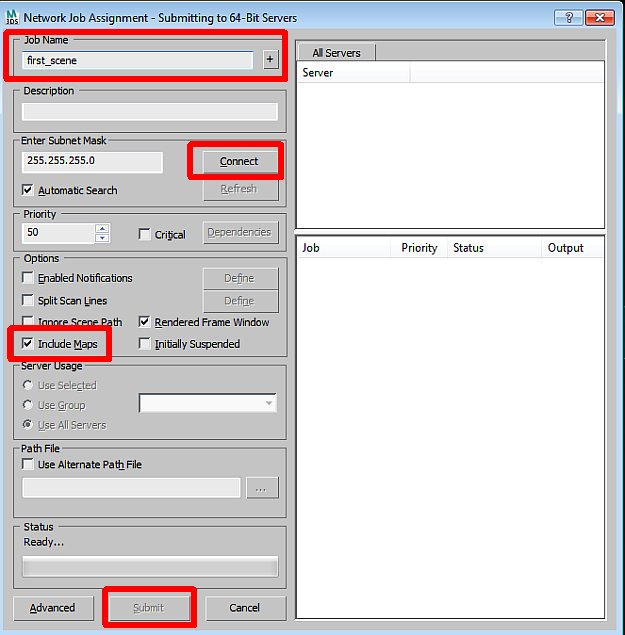

It will pop-up Network Job Assignment window;
In [Job Name]; write your scene name,
Select [Include Maps]
Now press [Submit]
Window will be closed and your job will be queued.
Now, from Start Menu > Programs > Autodesk > Backburner > Monitor

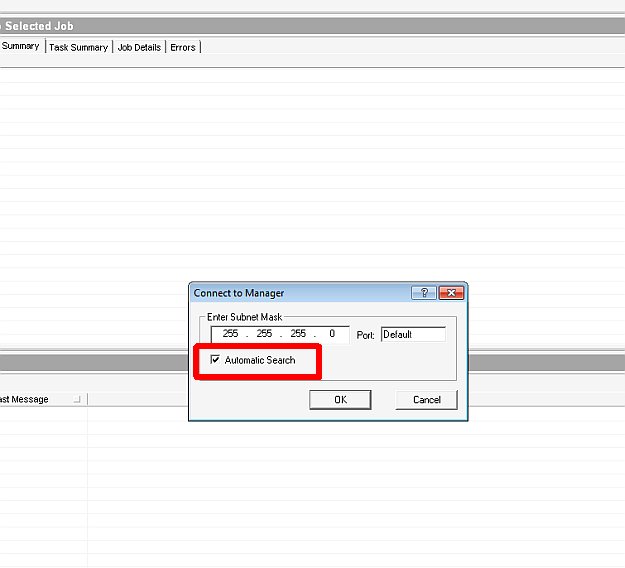

Check [Automatic Search] and click OK

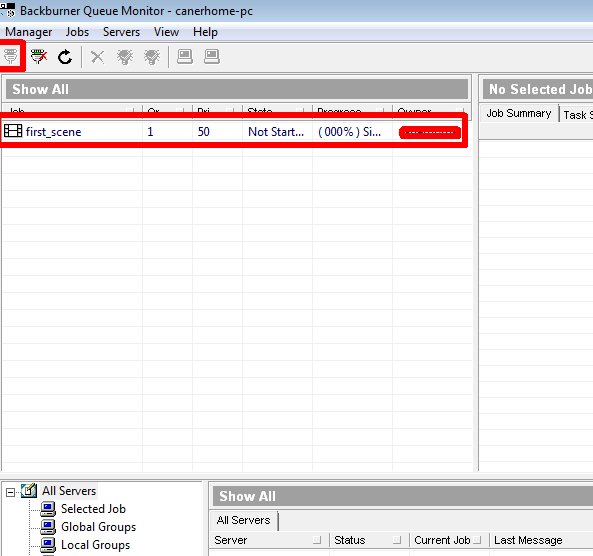

Now press Connect button and you will see your submitted job (scene) in Job List
Open second scene, set its Render Output Path, select [Net Render] and press Render. Do same steps for Network Job Assignment window and submit.
Repeat theese for your all scenes.
When you are ready to render (probably you want to push render button and want to go for a little nap along render time ),
Open, from Start Menu > Programs > Autodesk > Backburner > Server

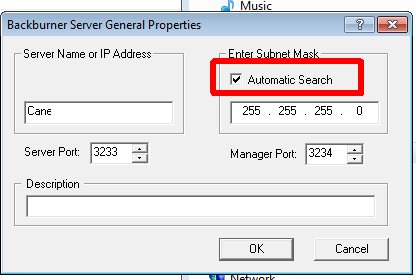

It will open Backburner Server General Properties
Check “Automatic Search” and press OK
Your render process will be started, and when it finished first scenes’ render, it will start second scene automatically, and the third, fourth… so on.. (so you can go for a nap in a peace of mind

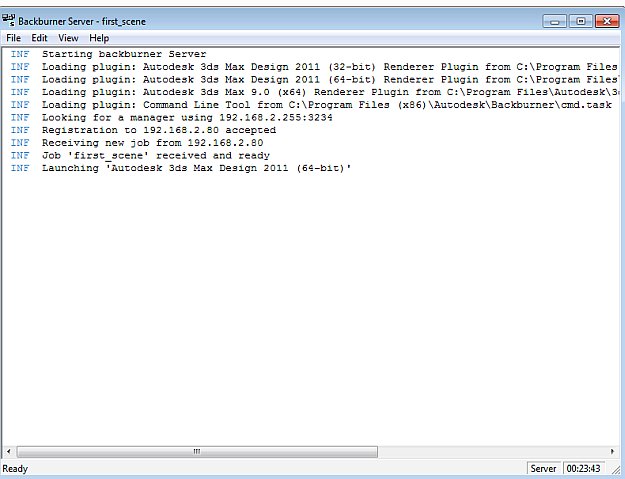

Successfully rendering process should be look like that;
If something goes wrong (because there are hundreds type of errors) on this server, select Shut Down from File menu and start server again..
If still goes wrong try to shut down Manager and Server and start them again. (Firstly Manager and then Server)
If still goes wrong, take a shower
Batch rendering with Backburner in Maya;
Exactly same steps for Backburner steps in Max, only job submitting proccess is diffrent in Maya.
Open your first maya scene,

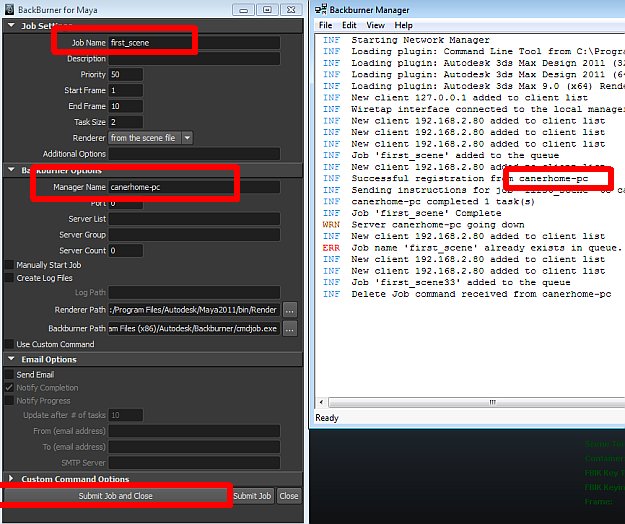

Select Rendering menu set, and select “Create Backburner Job…” from Render menu;
Write your scene name in Job Name
Write your Manager Name (You can find your manager name in Manager window.. Successfully registration from XXXXXXXXXXX)
Submit Job and Close
Repeat for your all Maya scenes set render output paths,
When you are ready to render, open server, it will start render process automatically,
You can watch your rendering process with Backburner Monitor..
That’s all folks!
